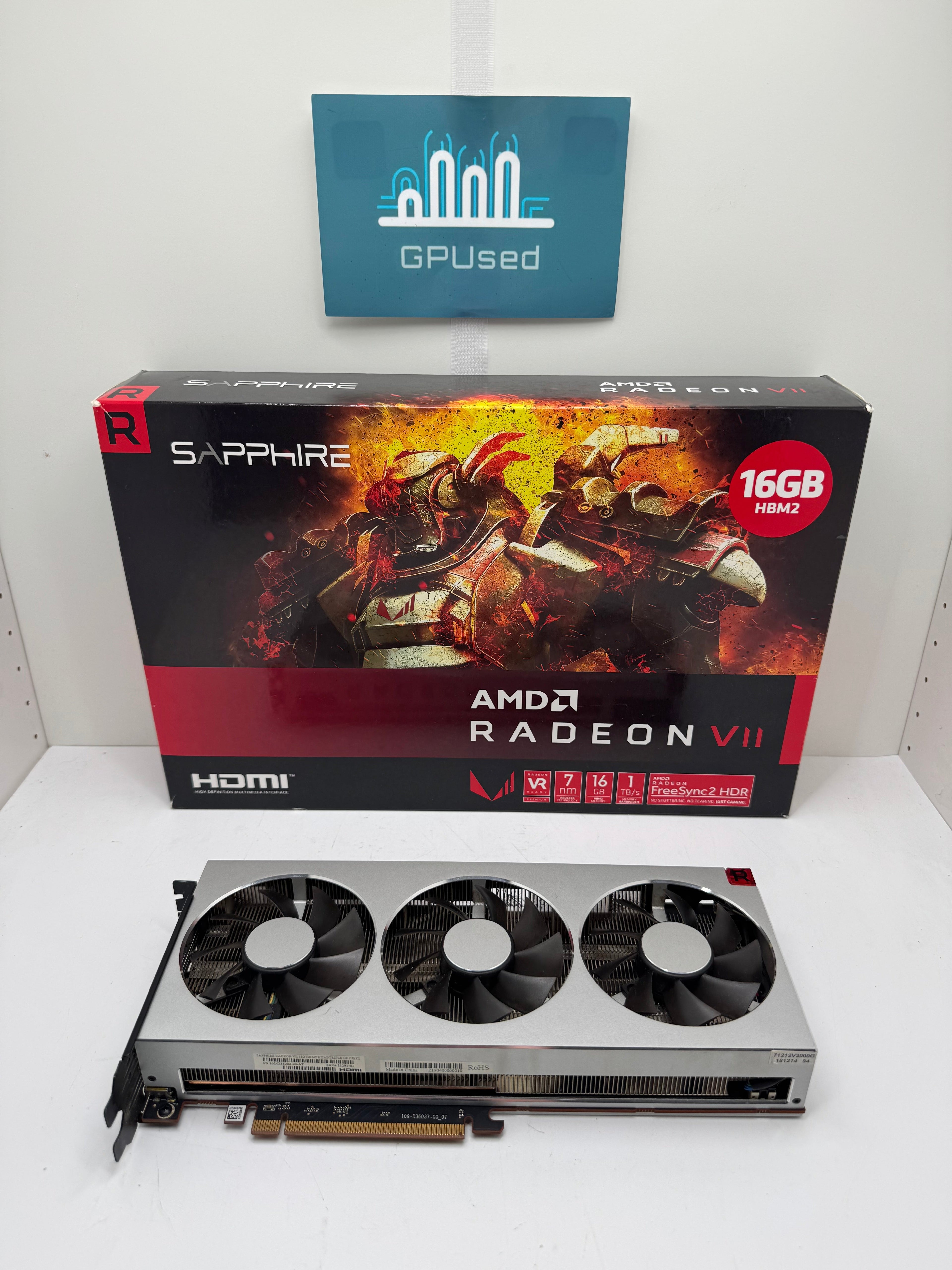

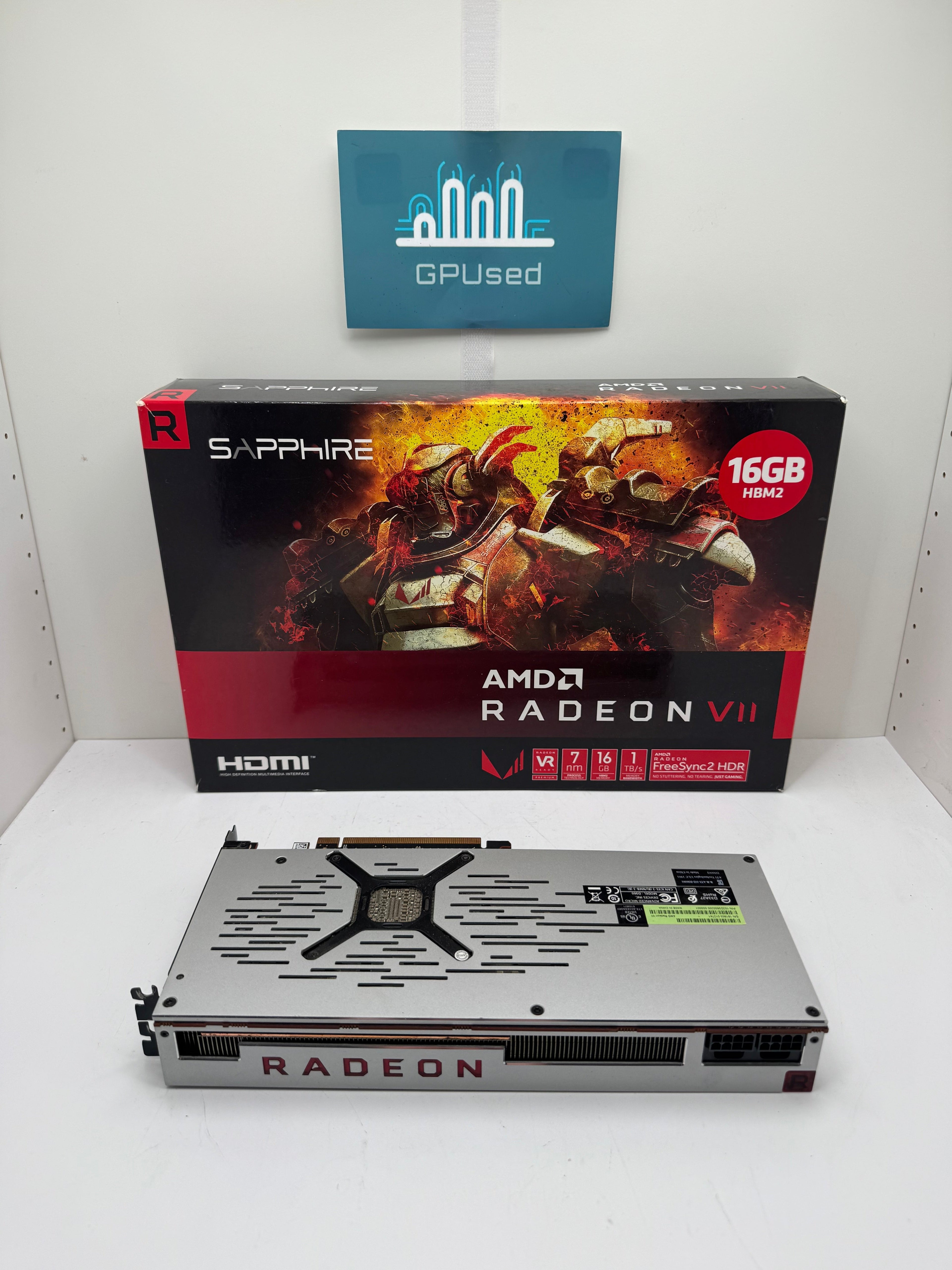

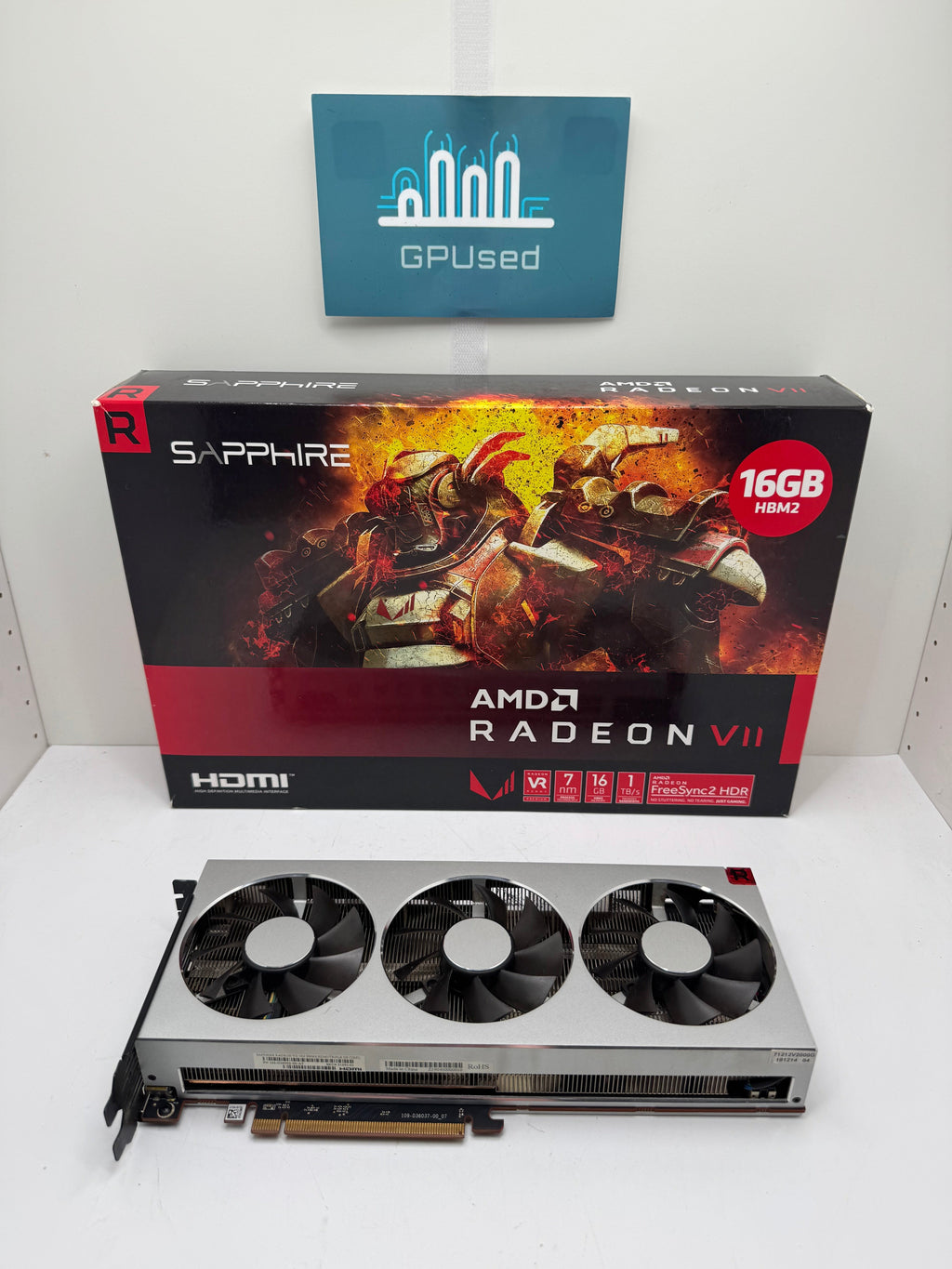

AMD Radeon VII 16GB HBM2 - A - Premium Edition
AMD Radeon VII 16GB HBM2 - A - Premium Edition
Product Description -
Summary - Great condition, doesn’t come with the original box. Specifications below -
Graphics Processor
Graphics Card
Relative Performance
Clock Speeds
- Base Clock
- 1400 MHz
- Boost Clock
- 1750 MHz
- Peak Clock
- 1802 MHz
- Memory Clock
- 1000 MHz
2 Gbps effective
Memory
- Memory Size
- 16 GB
- Memory Type
- HBM2
- Memory Bus
- 4096 bit
- Bandwidth
- 1.02 TB/s
Render Config
- Shading Units
- 3840
- TMUs
- 240
- ROPs
- 64
- Compute Units
- 60
- L1 Cache
- 16 KB (per CU)
- L2 Cache
- 4 MB
Theoretical Performance
- Pixel Rate
- 112.0 GPixel/s
- Texture Rate
- 420.0 GTexel/s
- FP16 (half)
- 26.88 TFLOPS (2:1)
- FP32 (float)
- 13.44 TFLOPS
- FP64 (double)
- 3.360 TFLOPS (1:4)
Board Design
- Slot Width
- Dual-slot
- Length
- 280 mm
11 inches
- Height
- 125 mm
4.9 inches
- Width
- 40 mm
1.6 inches
- TDP
- 295 W
- Suggested PSU
- 600 W

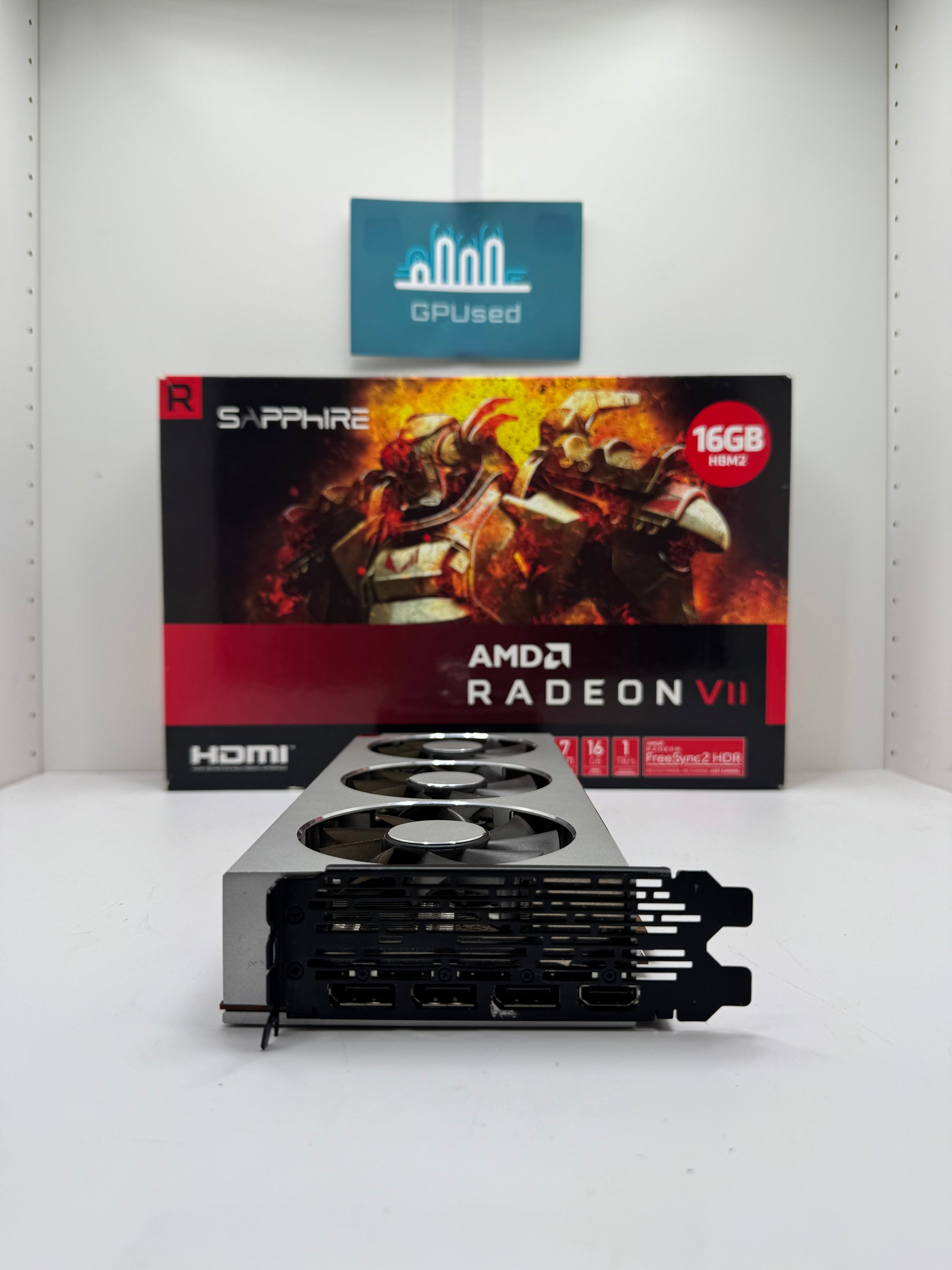

- Outputs
- 1x HDMI 2.0b
3x DisplayPort 1.4a

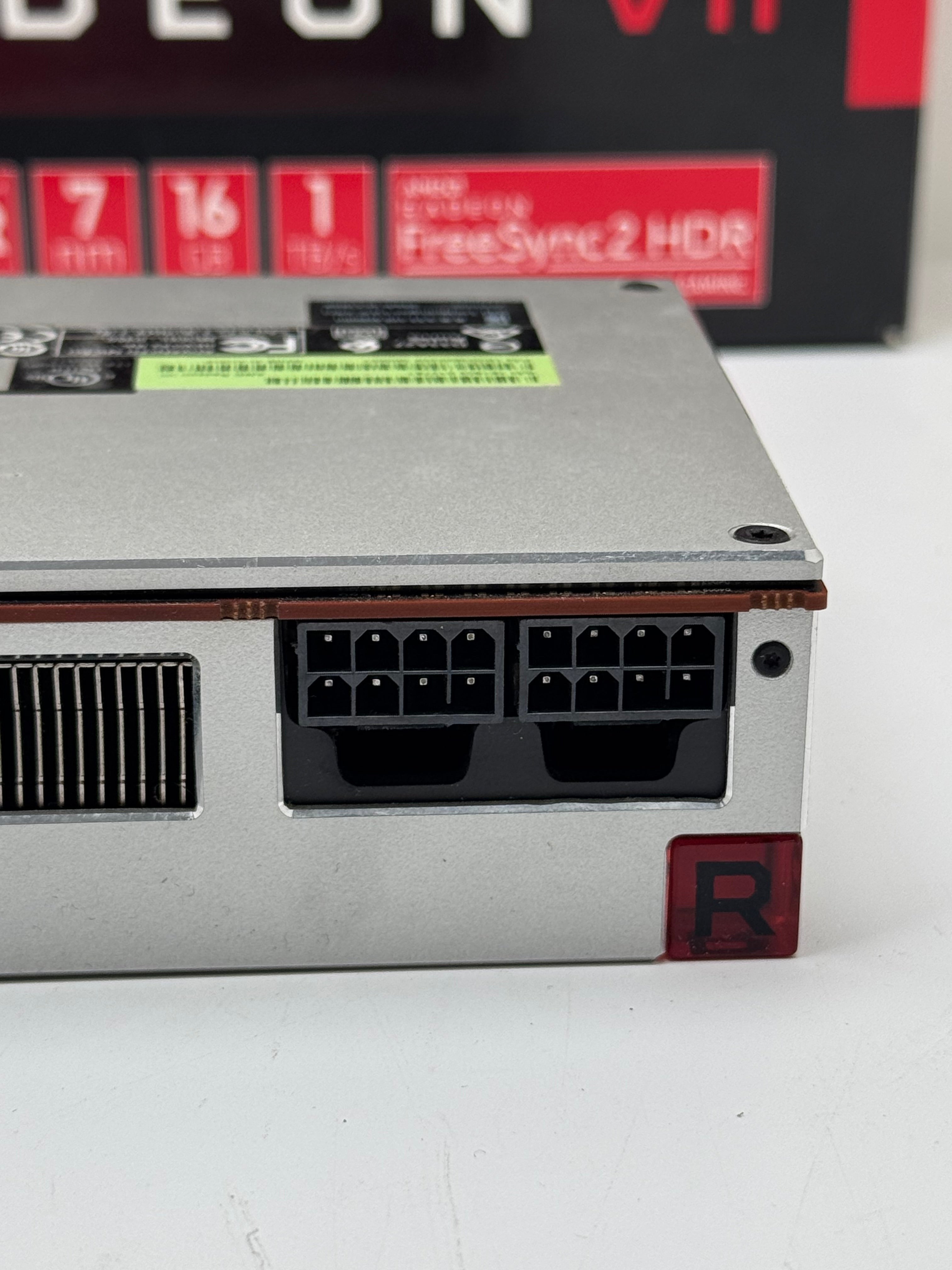

- Power Connectors
- 2x 8-pin
- Board Number
- 109-D36037-00_04
- BIOS Number
- 113-D3600200-105
Graphics Features
- DirectX
- 12 (12_1)
- OpenGL
- 4.6
- OpenCL
- 2.1
- Vulkan
- 1.3
- Shader Model
- 6.7
Vega 20 GPU Notes
| Generation: Vega II Codename: Moonshot Old Codename: Aruba Graphics/Compute: 9.4.0 Shader ISA: GFX9 (gfx906 / gfx907) Display Core Engine: 12.1 Unified Video Decoder: 7.2 Video Compression Engine: 4.1 System DMA: 4.2.0 Platform Security Processor: 11.0.2 CLRX: GCN 1.4.1 Latest Drivers: Windows 7: 64-bit: AMD Software: Adrenalin Edition 22.6.1 64-bit: Radeon™ Pro Software for Enterprise 21.Q1.1 Windows 10 / 11: 64-bit: AMD Software: Adrenalin Edition 24.3.1 (23.19.12) 64-bit: AMD Software: PRO Edition 22.Q4 |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
